LoRa-Based Off-Grid Early Warning Network

Objective

When disaster strikes, public power and cellular infrastructure are often the first systems to fail. Our LoRa-Powered Long-Range Early Warning System delivers off-grid, life-saving broadcast alerts and telemetry monitoring when standard networks go dark. Engineered specifically for challenging environments—such as rugged hilly terrains prone to landslides and expansive coastal areas exposed to tsunamis, surges, and storm events—the system continuously collects real-time sensor data and instantly broadcasts localized emergency warnings. Operable entirely on regional Sub-GHz ISM radio spectrum (such as 868 MHz in Europe, 915 MHz in the Americas, and 433/865 MHz in Asia), the platform maintains full regulatory compliance worldwide without requiring expensive spectrum licensing.

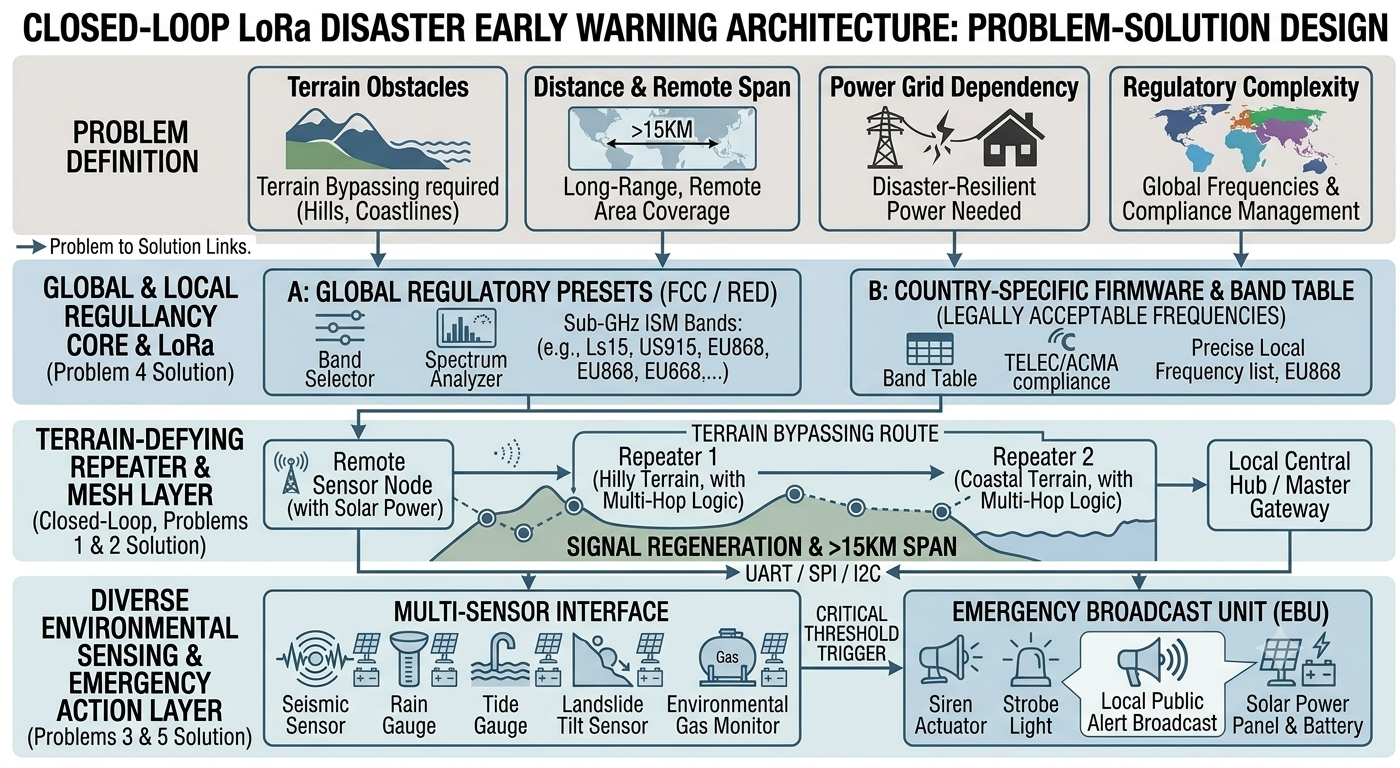

Solution Architecture

The primary challenge in traditional early warning systems is their total reliance on centralized power grids, cellular networks, and internet backhaul—infrastructure that routinely collapses during harsh weather conditions and severe environmental events. Furthermore, rugged topographies like mountainous terrain and winding coastal regions create physical line-of-sight obstructions that weaken or completely block standard wireless telemetry. To solve this, our system architecture operates as a fully closed-loop, off-grid LoRa network designed specifically to eliminate all external single points of failure. The autonomous, field sensors continuously monitor critical parameters—such as rainfall, soil movement or tide levels—and transmit data using chirp spread spectrum modulation, ensuring signal penetration even in severe weather.

To overcome the severe distance and physical terrain barriers inherent to coastal and mountainous areas, the architecture incorporates strategically placed repeater nodes equipped with multi-hop mesh logic. These repeaters capture weak or obstructed signals from remote sensors, regenerate and amplify the digital packets, and forward them seamlessly across terrain obstacles to reliably extend coverage across a minimum 15-kilometer zone. Furthermore, the system resolves international spectrum compliance issues by utilizing configurable Sub-GHz ISM radio bands with localized firmware presets (such as EU868, US915, and IN865), guaranteeing full regulatory legality in any global deployment without relying on licensed spectra or subscription-based networks.

The gateway evaluates sensor thresholds locally and, upon detecting a hazard, instantly initiates a high-priority, sub-second radio broadcast burst directly to field alert nodes. This direct RF mechanism simultaneously actuates sirens, strobe units, and electronic displays without any external network delay, delivering timely warnings precisely.
